A TRUE ZERO-ENTRY SWEEP

No in-bin preparation is required prior to starting the X-Series Sweep, a true Zero-Entry sweep. Simply start and monitor operation from the externally mounted control panel and watch your system work for you.

Features

CAPACITIES
3,000 - 10,000 BPH
AUGER DIAMETERS
12", 16"
FITS BIN DIAMETERS
30' - 156' ON FLUSH FLOORS

LEAVE IN PLACE MOTOR COVERS

GSI uses heavy-duty leave in place motor covers, eliminating the need to uncover or prep motors prior to sweep start up, making the X-Series a true zero-entry sweep at all stages of operation.

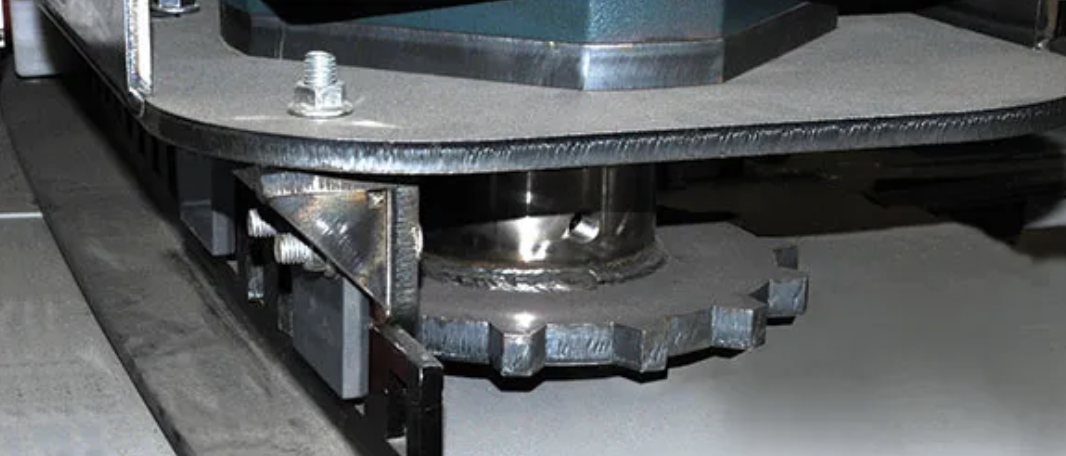

POSITIVE DRIVE

Motor/gearbox combination drives a sprocket, which engages a track anchored to the concrete floor, eliminating slippage of the drive tractor. Gearbox is factory filled with food-grade lubricant.

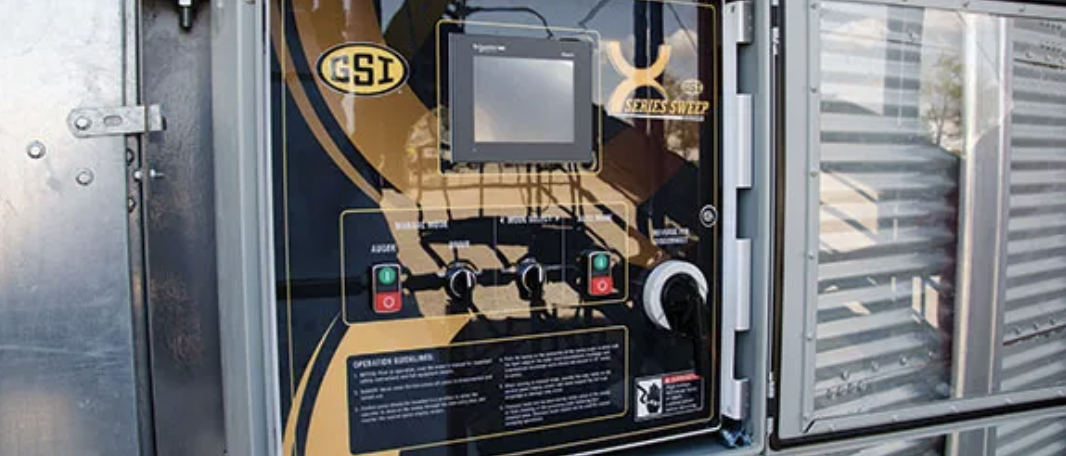

INFORMATION AT YOUR CONTROL

The control panel monitors and displays several key pieces of information, allowing for manual or automatic operation. To even further promote safety, the panel allows for the easy integration of safety switches such as light curtains.

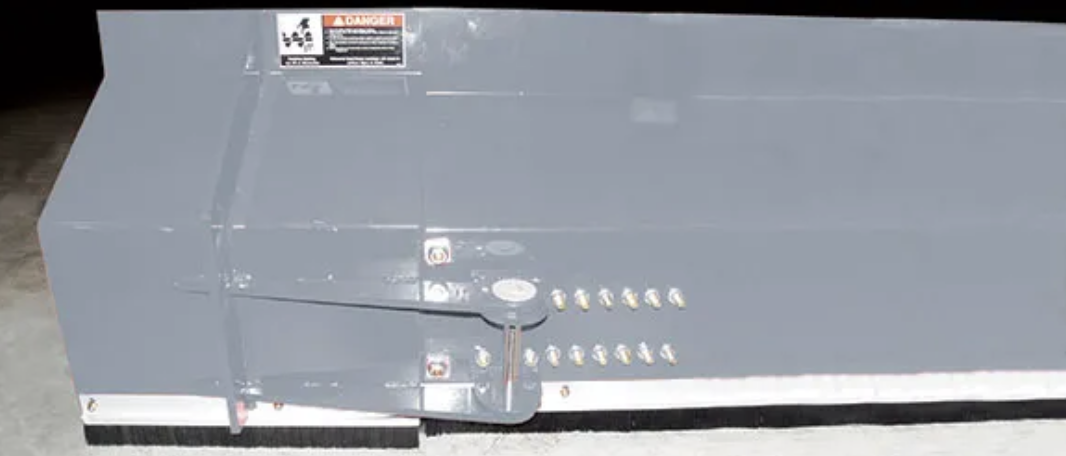

INTEGRATED PLOW

Our integrated plow provides a cleaner sweep near the bin wall with an adjustable design to accommodate doorframes. Shear bolt design prevents major damage to sweep or obstacle in event of contact.

BUILT TOUGH

Our heavy-duty design is built to stand up to the toughest environment with reinforced hanger-bearing brackets, heavy duty tapered roller bearings, and robust construction.

INTUITIVE CONTROLS

In the event of an avalanche, the X-Series senses an amperage spike and immediately reverses the sweep while keeping the flight engaged to allow for seamless operation of the sweep with no entry.
