DIRECT-GEAR-DRIVE SWEEP

COMPLETELY REDESIGNED

Capacities from 1500 to 5000 BPH (38.10 to 127 MTH)

HIGHLIGHTS

  • For bin diameters 15′-72′ (4.57-21.95 m).
  • 8″ or 10″ unload diameters.
  • Heavy-duty gearboxes, single piece backshield assembly and redesigned end-wheel.
  • Durable, reliable and easier to maintain, with fewer moving parts.
  • Permanently installed and ready to start with the flip of a switch.

BROCHURE

MANUALS

CONTACT US

BUILT TO PERFORM

BACK TO MATERIAL HANDLING

SMOOTH GATE OPERATION

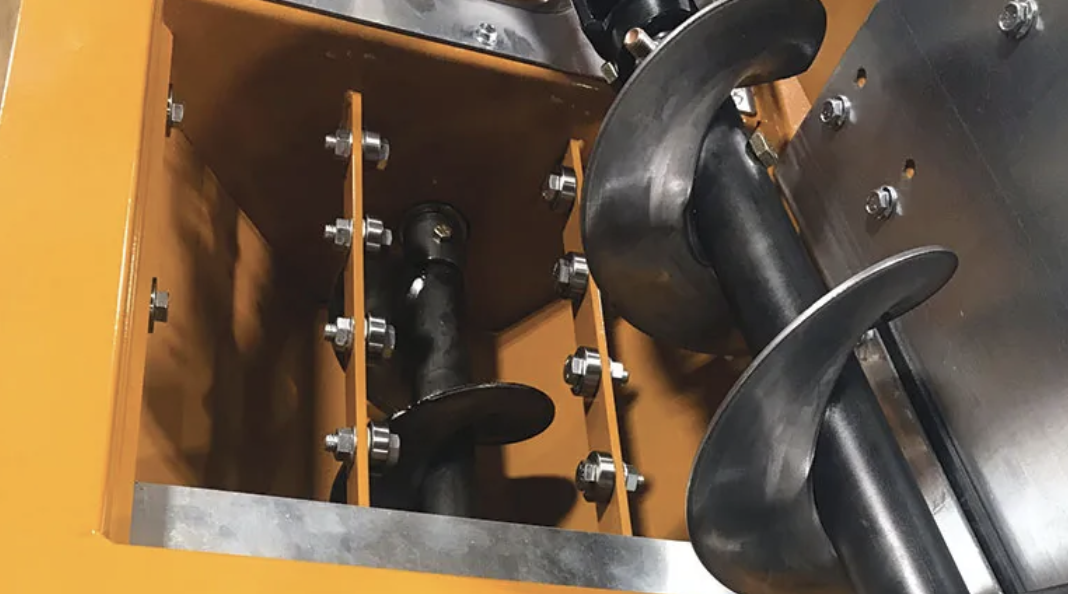

CENTRE WELL

Redesigned centre well uses fewer components, and unload tube bolts directly onto the centre well for easier installation. Extended bolts on centre well gate break up clusters. Steel roller bearings allow for smooth gate operation and durability.

RACK-AND-PINION

CONTROLS

Rack-and-pinion controls are standard on all direct gear drive sweeps. Simplified sweep engagement with a band on control handle, with pin for locking position. Separate control pipes for center and intermediate wells along with a crank handle make opening and closing gates very easy.

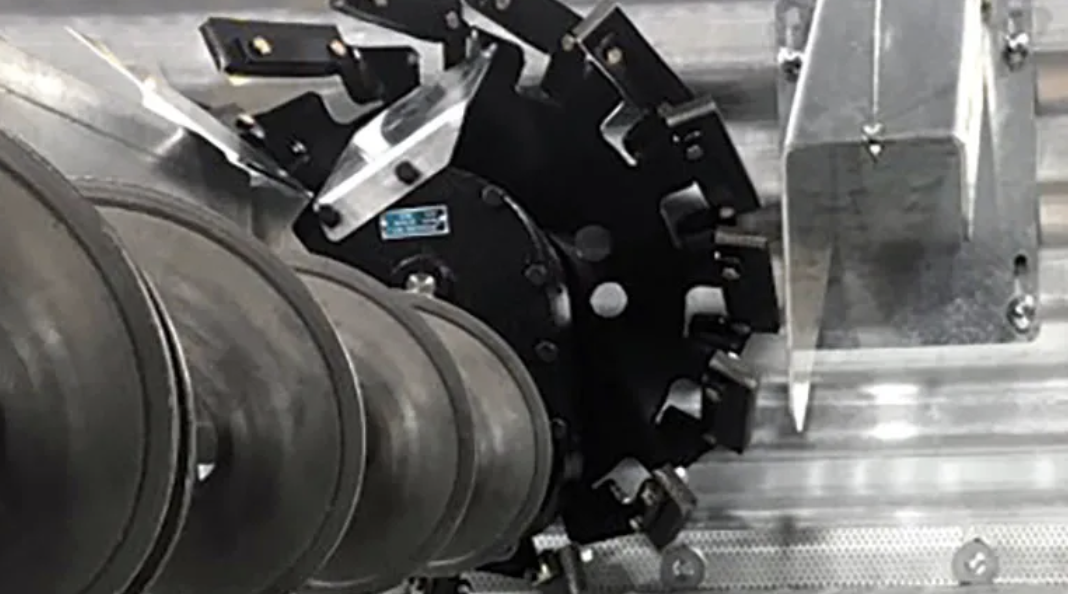

WHEEL

Proven drive wheel design provides aggressive sweep action, advancing the sweep into the grain in even the most challenging conditions.
