Separate control pipes for center and intermediate wells and crank handle make opening and closing gates easy. Rack-and-pinion controls are standard on 8″ (203.2 mm) and 10″ (254 mm) and larger sweeps.
CARRY-IN BIN SWEEP
AND ROUND TUBE UNLOAD
HIGHLIGHTS
- Standard (6″/8″ or 10″) or heavy-duty (6″/8″, 8″/10″ or 10″/12″) models available.
- Standard duty for bin diameters 15′-48′ (4.57-14.63 m).
- Heavy duty for bin diameters 24′-72′ (7.32-21.95 m).
- Easily move the entire unit from one bin to another.
- Torque tube and back shield adjust for close-floor clearance for maximum clean-out.
BUILT TO PERFORM

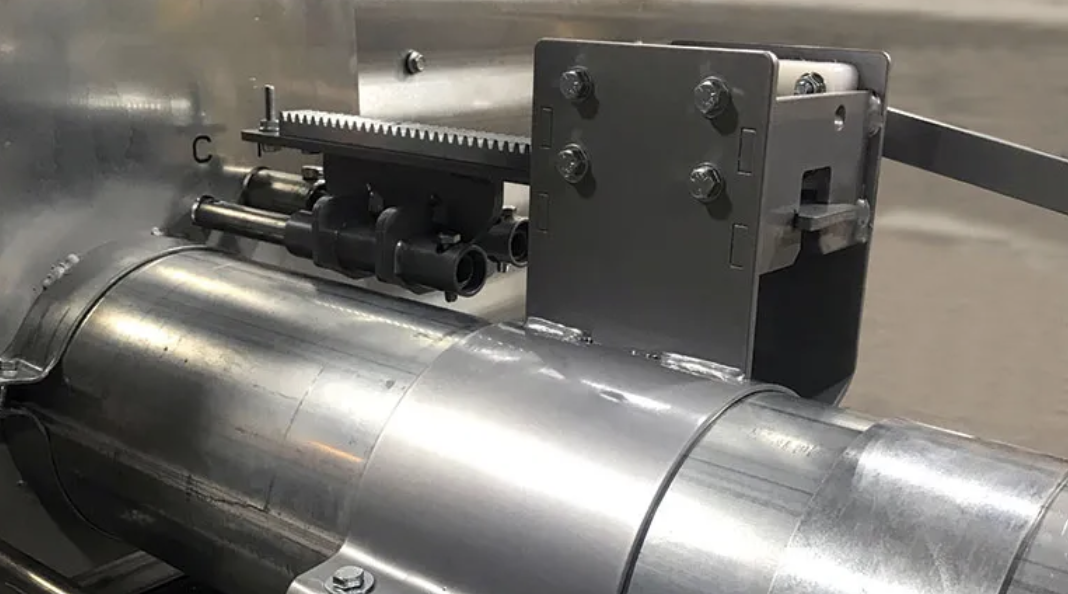

RACK-AND-PINION CONTROLS
DURA-EDGE® FLIGHTING
All direct gear drive sweeps are equipped with heavy-duty 7-gauge Dura-Edge® Flighting that lasts 30% longer than regular flighting. An improved wear option is also available.

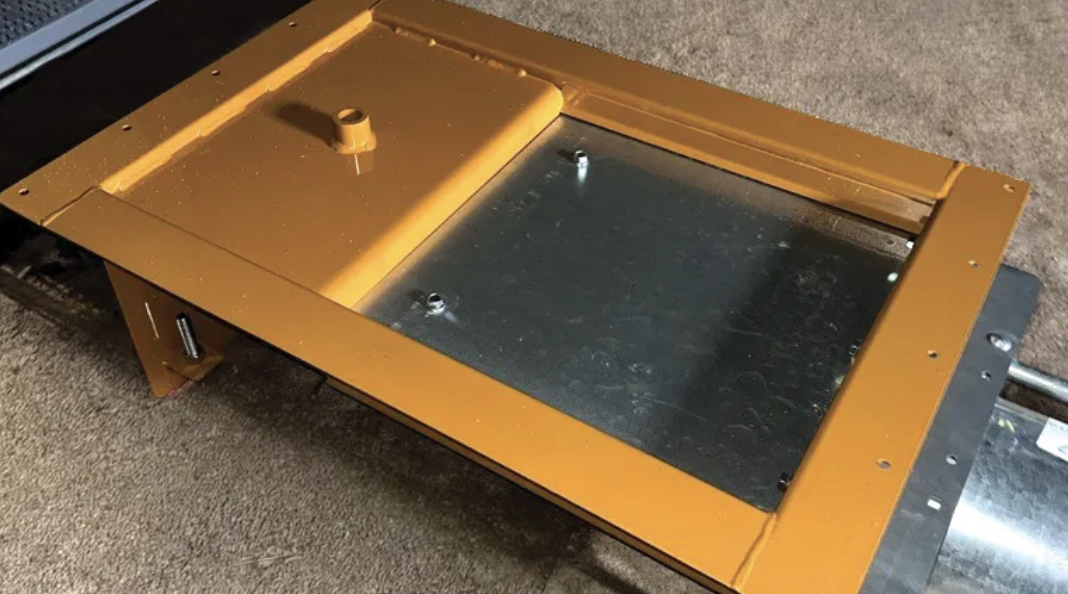

TUBE AND WELL UNLOAD KITS
CENTRE WELL
GSI Tube & Well Unload Kits feature a newly designed center well for improved durability and reliability. The center well is able to accommodate carry-in sweeps. All wells are powder-coat finished for extended life.
Available in 8″ for 15′-48′ diameter bins and 10″ for 24′-72′ diameter bins.

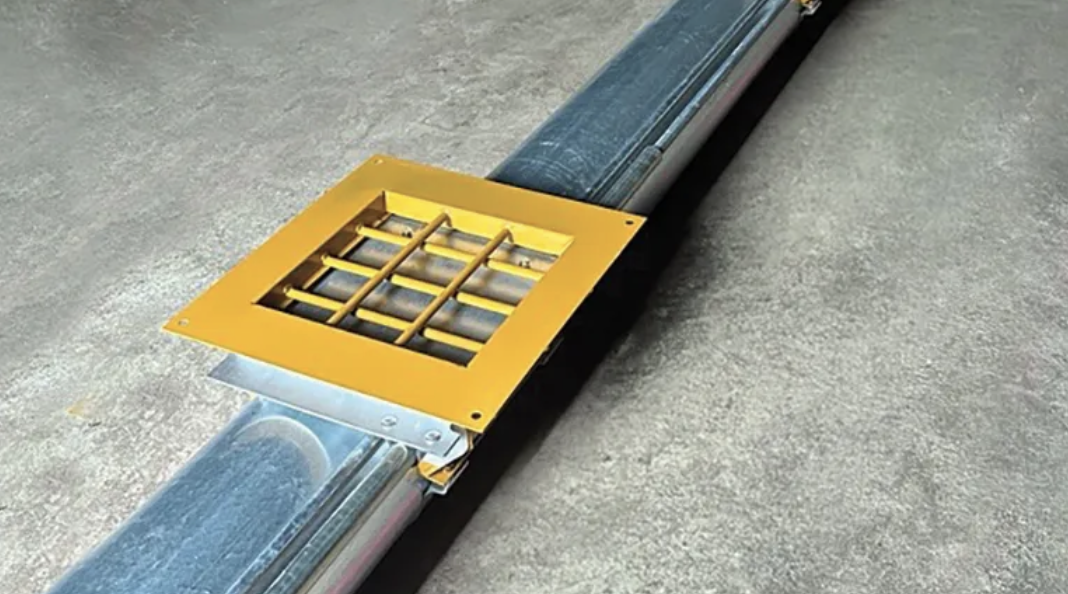

TUBE AND WELL UNLOAD KITS
INTERMEDIATE WELL
Carry-In intermediate wells use steal bearing rollers, include a band-on well and can be paired with a 12″ floor.

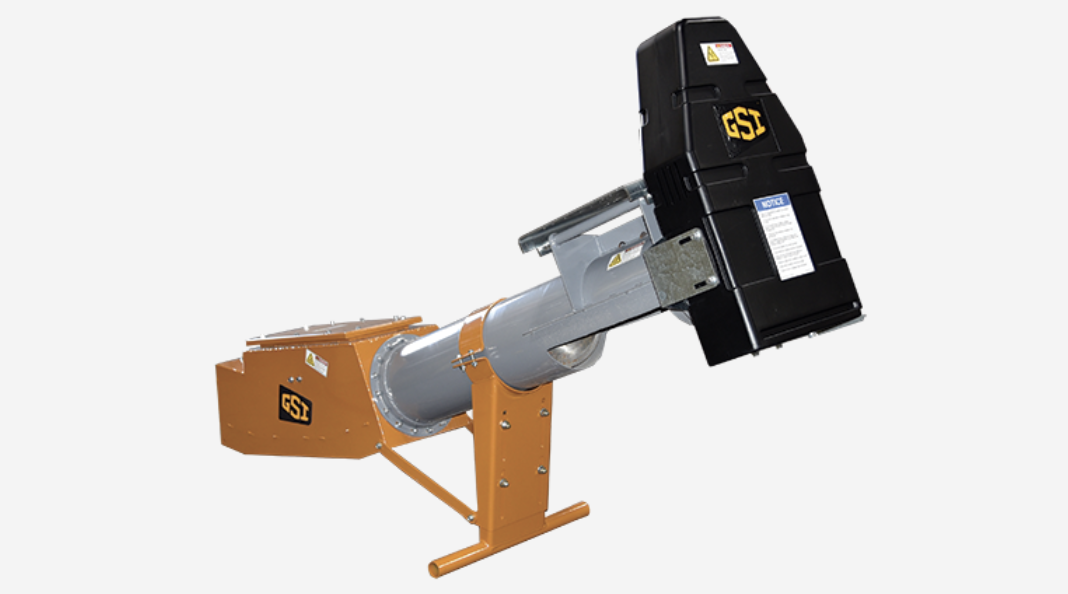

POWERHEAD DISCHARGE OPTIONS
VERTICAL, HORIZONTAL, OR 25 DEGREE DISCHARGE
Choose a vertical, horizontal, or 25 degree discharge to make it easier to discharge directly into a truck, trailer or other equipment with a powerhead discharge at the angle that is right for your operation.
OPTIONS

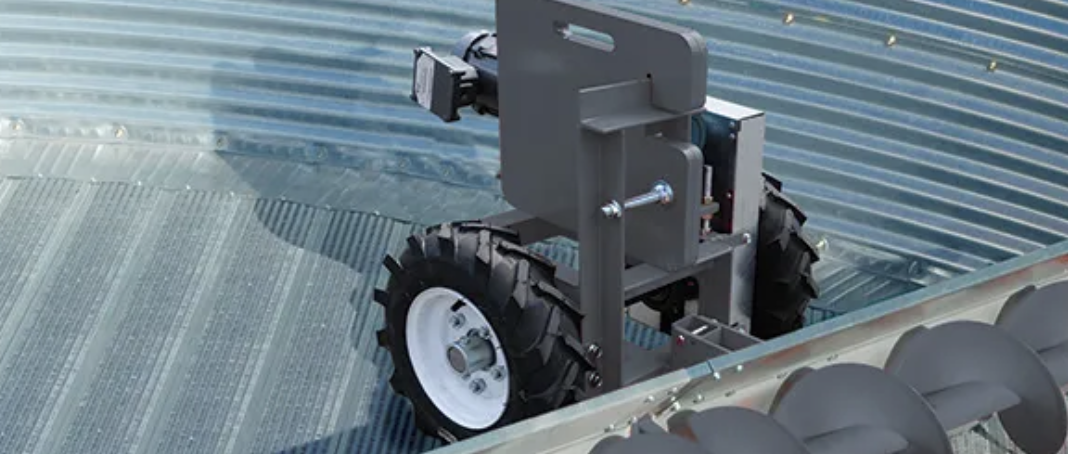

SWEEP TRACTOR
Standard on 12” (304.8 mm) heavy-duty sweeps, and optional on 10” (254 mm) models, the sweep tractor is a knockdown design to fit into a 18” (457.2 mm) square door, easily retrofitted, and can improve the performance and safety of your sweep.
