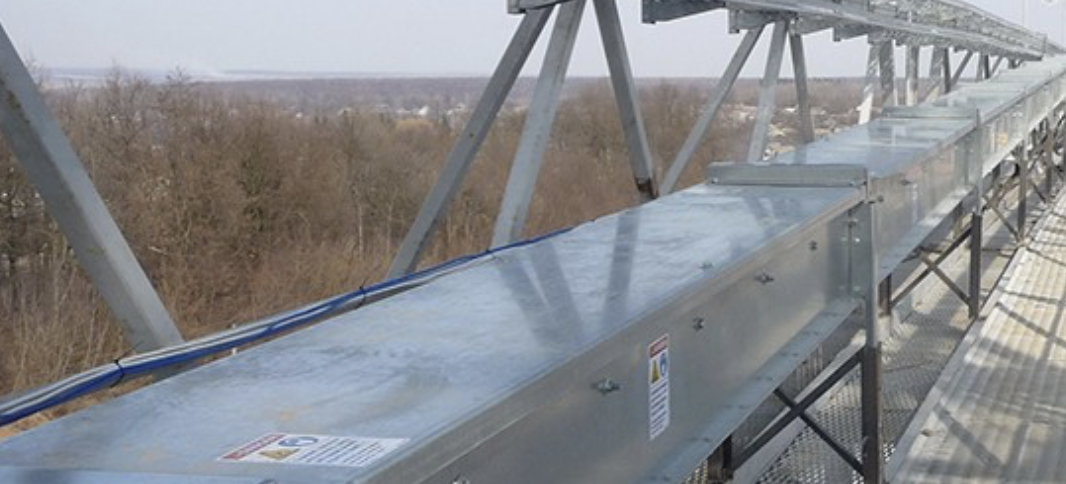

INTERSYSTEMS EN-MASSE CHAIN CONVEYORS

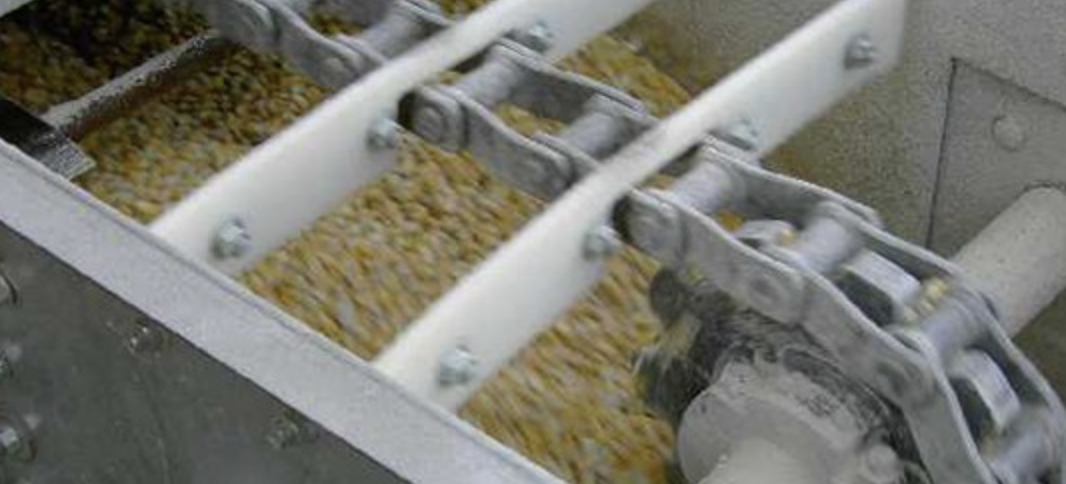

Moving grain En-Masse is the most efficient (HP/Bushel) way to move grain horizontally in most applications that have multiple inlets and/or multiple discharges. With En-Masse, grain damage and maintenance costs are lower than conveying with augers or air systems.

Features

3,000 - 48,000 BUSHEL PER HOUR
UP TO 3,182 BUSHELS
BEND OR INCLINE MAXIMUM
60⁰
MAXIMUM HORIZONTAL LENGTH
200' +
FINISH
PAINTED, GALVANIZED, HOT DIPPED OR STAINLESS STEEL

PREMIUM COMPONENTS

InterSystems’ two En-Masse Conveyor models, the 12/17 Series for average capacity and the higher capacity 26/33 Series, are constructed for years of reliable performance under the toughest conditions.

CUSTOM ENGINEERING

Each application is unique with its own capacity requirements, location specifications and environmental needs. InterSystems’ team of engineers considers these factors and more when designing each conveying system.

SERVICEABILITY

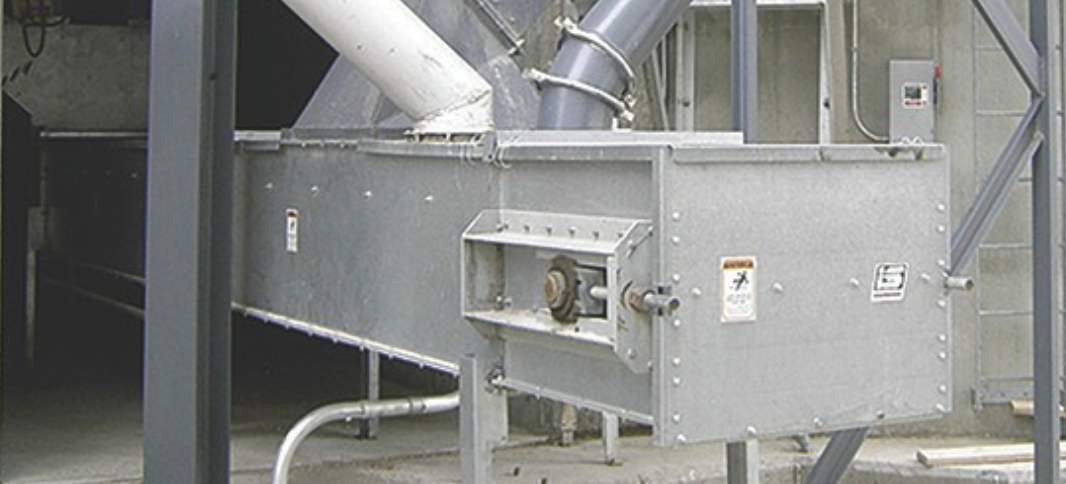

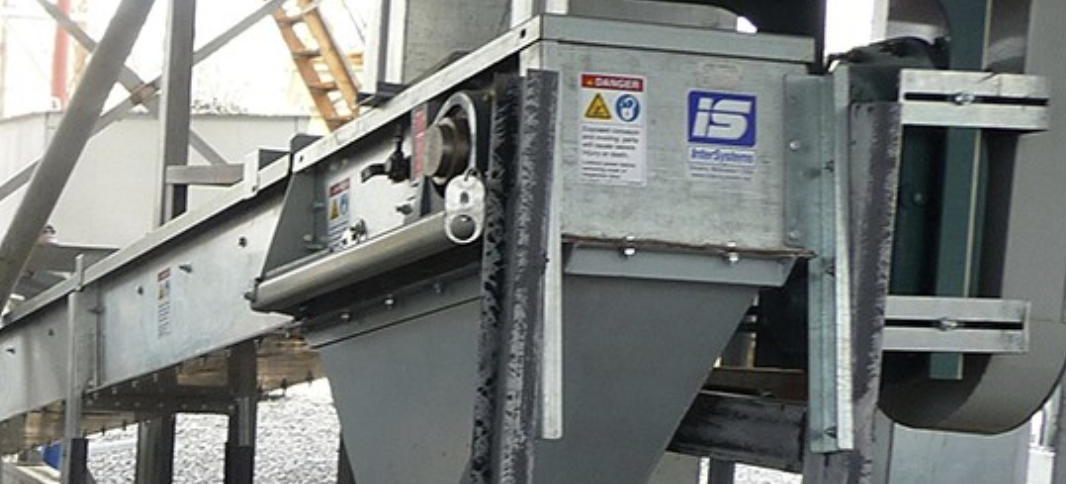

Features of the En-Masse Conveyor were designed to be easy to service and maintain. Both head and tail shaft assemblies are removable, allowing for quick and convenient service. With fasteners positioned clear of material flow, the A.R. steel liners can be easily removed and replaced.

OPTIONS

OPERATIONAL CONFIGURATIONS

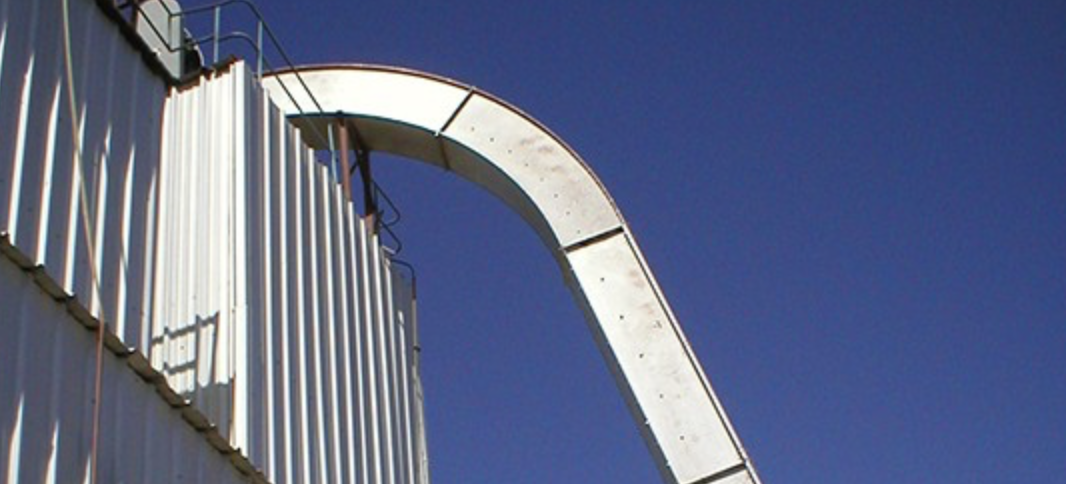

InterSystems’ En-Masse Conveyors are very adaptable and may be configured in a series of horizontal and/or inclined segments. The application that might have required multiple conveyor runs, drives and transitions may be accomplished with a single En-Masse Conveyor. Tall flight configurations are available for steeper inclines.

REVERSING

An optional reversing conveying system provides versatility for tight spaces or when multiple intermediate discharges are employed.

HIP LIDS

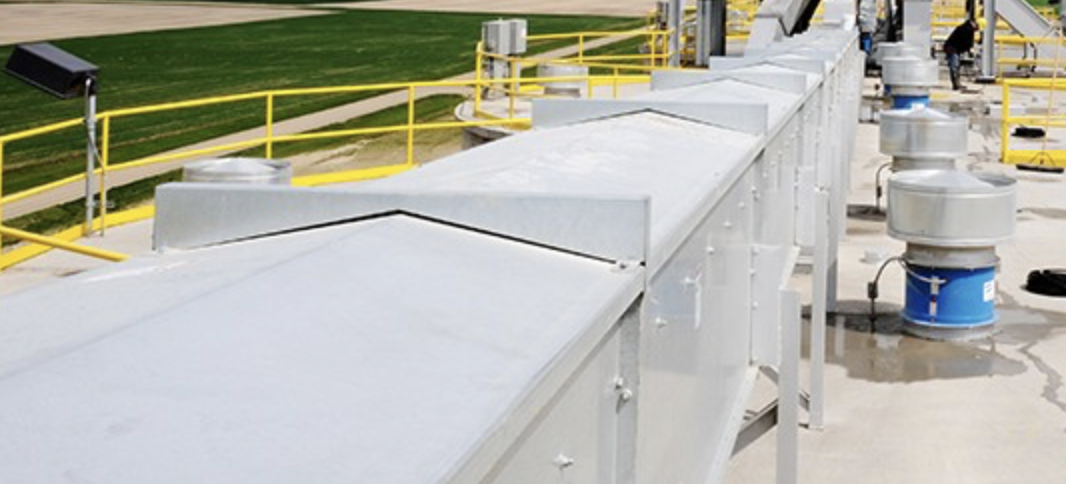

For En-Masse Conveyors destined for a life exposed to the elements, InterSystems offers a hip lid option. This construction offers superior protection against rain and snow accumulation.
