Moving grain En-Masse is the most efficient (HP/Bushel) way to move grain horizontally in most applications that have multiple inlets and/or multiple discharges. With En-Masse, grain damage and maintenance costs are lower than conveying with augers or air systems.

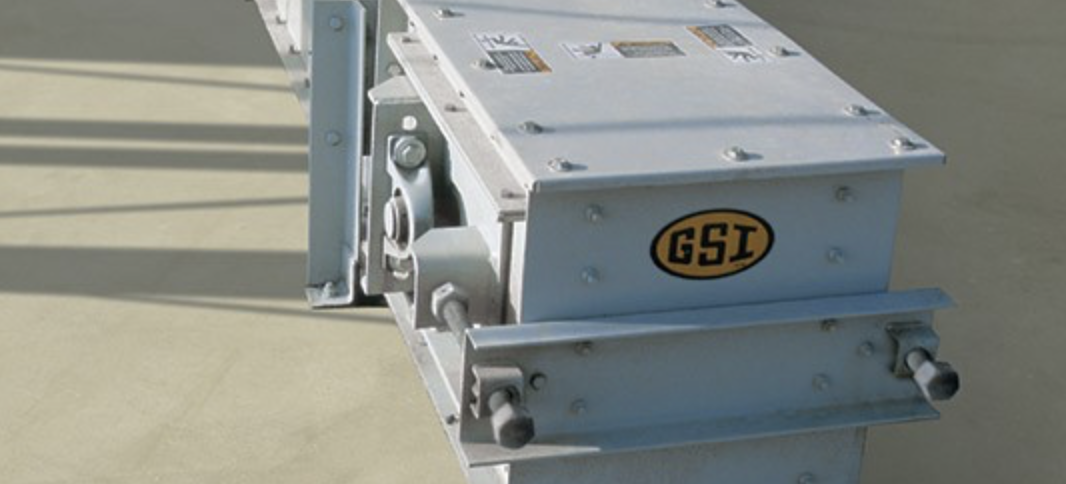

EN-MASSE CHAIN CONVEYORS 12” / 14” / 20” TALL
Features
CAPACITY
1,500 - 25,000 BUSHEL PER HOUR
BEND OR INCLINE MAXIMUM
15⁰
MAXIMUM HORIZONTAL LENGTH
(12" - 300') (14" - 280') (20" - 300')
FINISH
GALVANIZED OR POWDER COAT
BUILT TO LAST
All trough pieces are flanged with structural angle to provide rigidity and accurate alignment. The trough is a bolted, 3 piece construction, rather than a formed U shape, for increased strength, durability, and ease of service.
MAINTENANCE FRIENDLY
Bolted access allows removal of the shaft, sprocket, and bearings as a complete assembly in both the head and tail for quick replacement or service. Optional split sprockets speed service even more. In addition, bolt on trough bottoms make liner replacement easier.
DETAILS THAT COUNT
UHMW flights prevent steel-to-steel contact, extending chain life and reducing noise. Standard V-cup flight attachments are precision welded to add strength to the flight. Flights are then factory bolted to the cup for added durability.
OPTIONS
INLETS
Control the flow of grain into your conveyor with one of our multiple inlet options including bypass dump hoppers and bypass inlets.
ACCESSORIES
GSI offers a full line of gates, transitions, discharges, monitoring devices, and operators to customize your GSI conveyor specifically to your application.
MULTIPLE FINISHES
Available in galvanized or powder coated steel to stand up to the elements and provide you with years of service with superior visual appearance.
RAIL RETURN
Optional rail returns are lined with abrasion-resistant steel and tapered end to end to minimize flight wear. To ensure smooth operation, each of the rails overlap at the flange connection. Roller returns are also available.
