- Dodge® pillow block bearings standard on all sizes, supplied with full-coverage safety guarding
- ½” thick slotted edge machined UHMW shaft seals on all sizes keep dust in & weather out
- 7 gage side panels (4.55mm) standard on all sizes
- Flame-cut, hardened steel sprockets. Split hubs standard on Select IS, and available on Select
- Head shafts are turned ground and polished
- Companion mating flanges and discharge transitions available for all sizes
GSI SELECT™ EN-MASSE CHAIN CONVEYORS
THE PERFECT CONVEYOR FOR YOUR PROJECT
HIGHLIGHTS
- Limitless custom configurations with the right sizes, layouts, capacities, options and accessories – it’s your choice and it’s almost all standard.
- Commercial-grade options such as wear liners and bearings.
- We’ve taken the best design elements and combined them into one platform. Superior craftsmanship, commercial-grade dependability and easy maintenance that for decades of reliable and profitable service.
- Designed for your application, with greater flexibility and a wider selection of features and options.
- GSI Select IS comes standard with split sprocket for easier service, higher-end roller bearings and class II drives with class III upgrades. Hot dip galvanize or stainless steel finish, our most durable AR500 liner and S-Path alignment are all exclusive options.
Easily create and customise the perfect conveyor for your project.
GSI’s top-of-the-line conveyor is loaded with premium features and exclusive options.
BUILT TO PERFORM

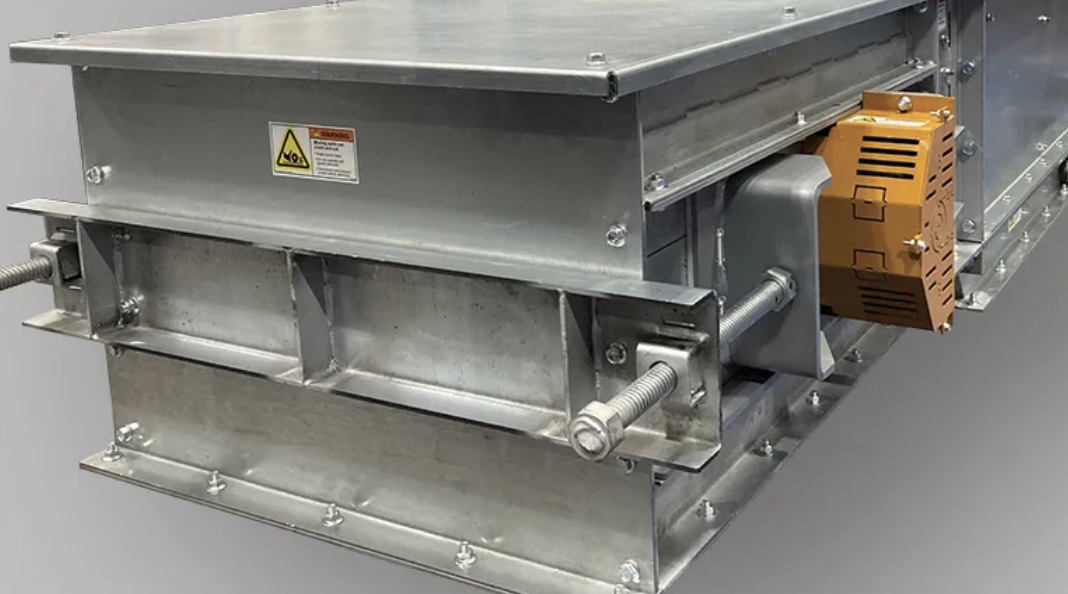

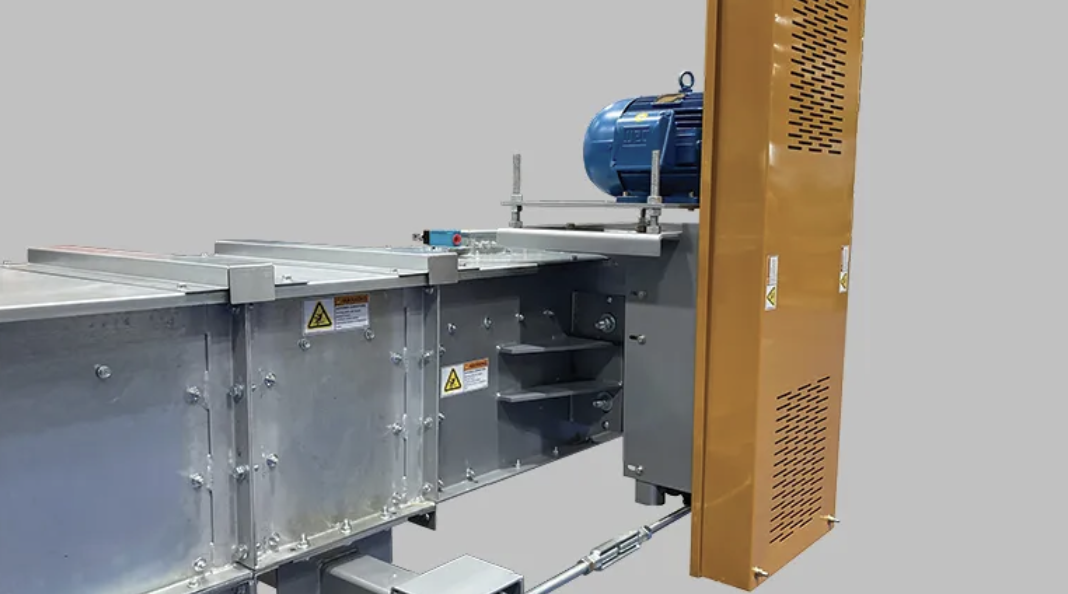

HEAD SECTION
INTERMEDIATE SECTION
- Standard 10 gauge (3.41mm) intermediate trough sides
- Abrasion resistant steel wear liners with recessed fasteners for removal or replacement
- Fixture assembled for squareness to ensure accurate alignment and ease of installation
- Welded 2” structural steel angle flanges to provide rigidity and accurate alignment
- AR steel slide rail or UHMW roller return available on all sizes
- 3 standard cover styles to meet any need & ensure weather-tight operation
- Bolted removable bottom construction

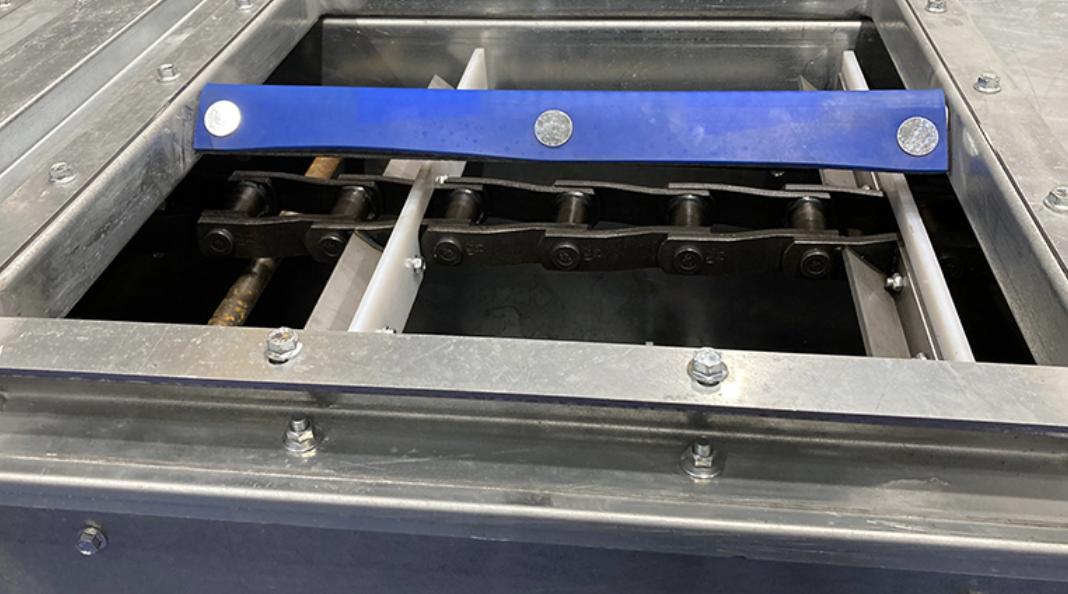

CHAIN FEATURES
- Steel Bushed Roller (SBR) & Welded Mill (WM) chains available to suit any application
- Multiple chain specs available in most box sizes to better suit conveyors of all lengths
- UHMW flight pads prevent steel-to-steel contact with Nylon optional for extremely abrasive materials
- Optional return cups for intermediate discharge or reversing applications to assist with clean-out
TAIL SECTION
- Dodge® pillow block bearings standard on all sizes, supplied with full-coverage safety guarding
- Corrosion-resistant ACME threaded chain take-up system with machined UHMW shaft seals
- 7 gage side panels (4.55mm) standard on all sizes
- Flame-cut, hardened steel sprockets. Split hubs standard on Select IS, and available on Select
- Tail shafts are turned ground and polished

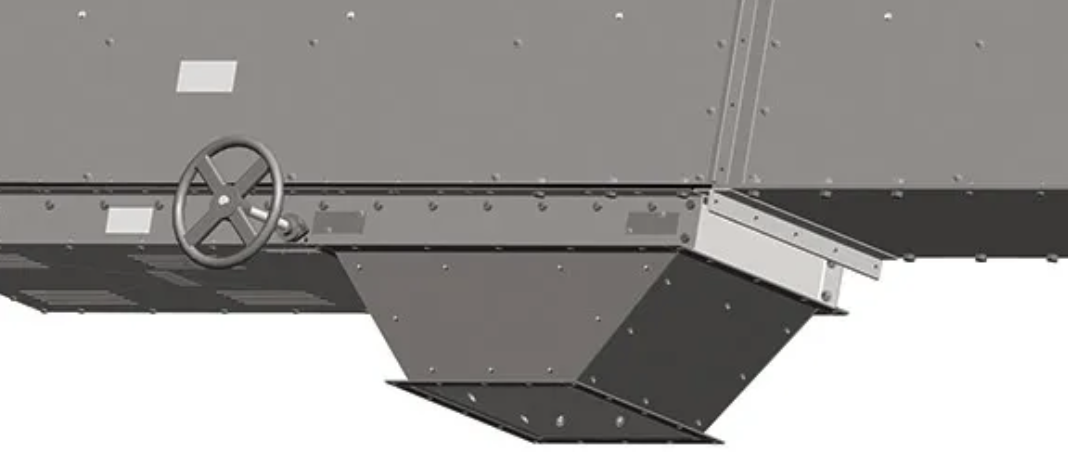

DISCHARGE GATE
- Flush style design standard for both intermediate & head gates to minimize cross-contamination
- Chain carry over bars are laser cut into 3/8″ abrasion resistant plate bottom for superior alignment
- Beveled edges ensure smooth operation
- Available in inline or crosscut styles
- Options include factory mounting and electric drives
