GSI MODULAR TOWER DRYERS

GSI released its first Tower Dryer in 1994 with its Patented GSI Grain Inverters; we’ve been and continue to be the market leader in grain drying thanks to consistent innovation providing you with the features you need. GSI’s Modular Tower Dryer design natively allows for easy heat recovery without the uneven heat issues of other designs, patented self cleaning divider floor and quiet operation with the fans located inside the grain column. A modular Design allows for faster installation times.

In addition to great design, GSI has the Dealers and Service Techs to ensure your dryer works when you need it; we know it’s important. Harvest is a short window of time and you depend on your dryer working.

Features

CAPACITIES/HR
UP TO 1,690 BPH DRY & COOL @ 5 PT. REMOVAL
OPERATION TYPE
DRY/COOL
FUEL
LP OR NATURAL GAS
ELECTRICAL
3 PHASE
STANDARD GRAIN INVERTERS
STANDARD VACUUM COOL HEAT RECOVERY

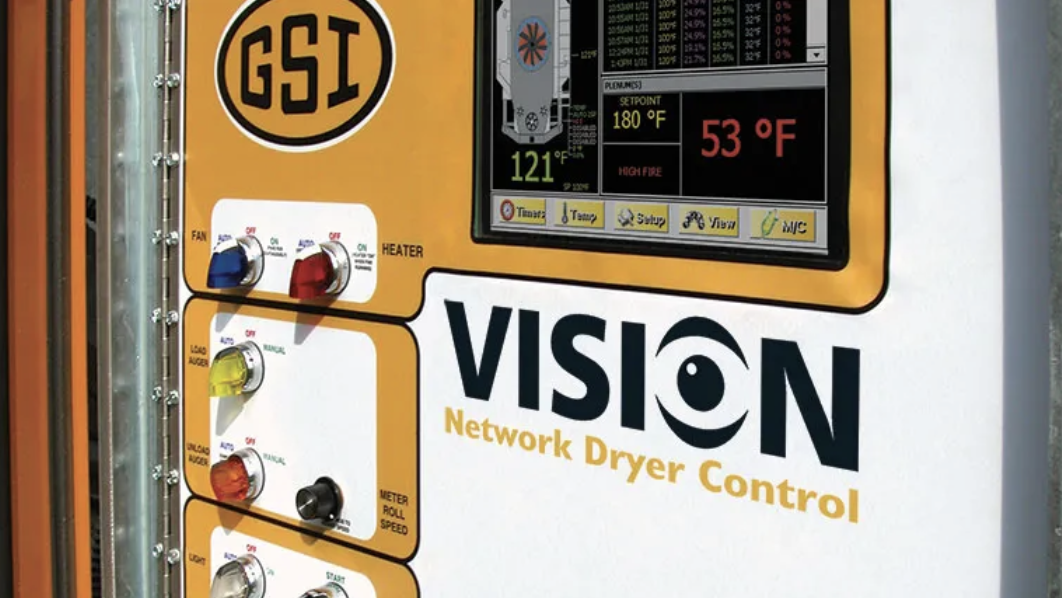

VISION CONTROLS

Vision controls offer simple operation, with an easy-to-read large color graphical touch display. Located on the dryer or remote with a few wires, these controls are design specifically for GSI grain dryers, giving you unmatched options and settings to get exactly what you need from your dryer control.

PATENTED ADJUSTABLE COOLING FLOOR (MODULAR TOWER EXCLUSIVE)

The adjustable floor allows either 1/3 or 1/5 of the dryers column to be used for cooling, allowing for higher capacities in high moisture conditions or maximum cooling in more normal conditions as well as a higher exiting grain temperature to take advantage of cooling bins, increasing capacity and improving efficiency and grain quality.

GRAIN INVERTERS

Our grain inverters move all but the outside 2″ (50.8 mm) of grain, promoting higher test weights, maximum grain quality, and reduced fuel usage. The outside layer of wet grain is dried using the heat that would have otherwise escaped the dryer. When using inverters, you eliminate over-dried grain and maximize drying efficiency as well as grain quality as you simplify your operation with a convenient clean-out door for easy and quick maintenance.

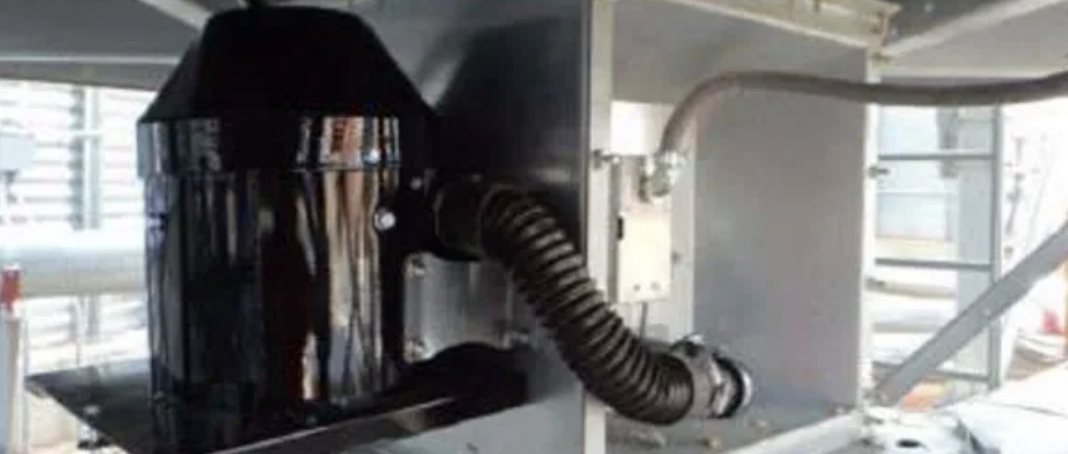

STATIC MOISTURE SAMPLER

Improve your accuracy with the static moisture sampler. Debris guards ensure a trash-free sample and delivers a uniform representative sample to the test chamber. A blower system gently moves the grain out of the chamber, cleaning it each cycle. Get the most accurate results as the moisture reading used to monitor/calculate discharge grain moisture is only taken while the grain is static and not flowing.

OPTIONS

WATCHDOG

WatchDog allows you to monitor and control your dryer from anywhere. Monitor and adjust moisture and temperature from your phone, tablet, or computer with ease.​

INDUSTRY BEST EMISSIONS CONTROL

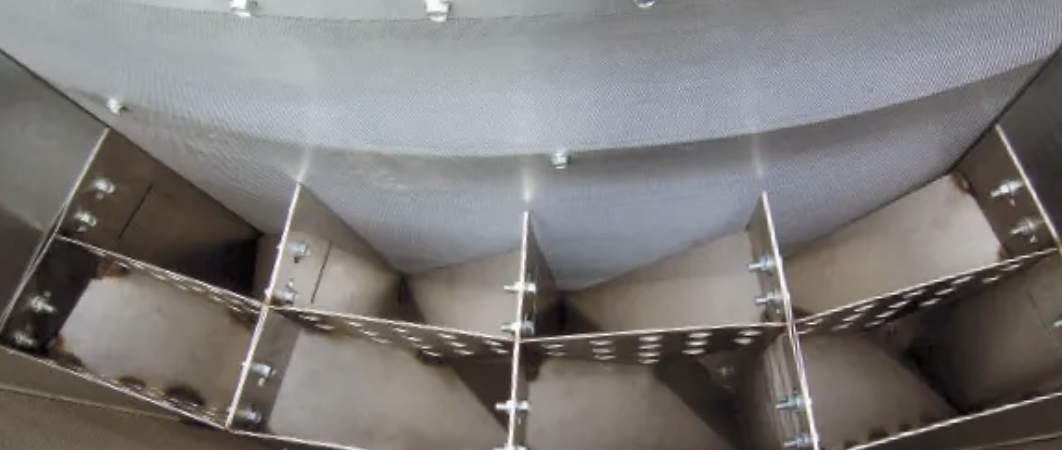

Our emissions control features a tapered design to keep particulate in the dryer instead of in the air. Standard small .078” (1.98 mm) perforations are used to retain bees wings and particulate material, while even smaller .0625” (1.59 mm) perforations are used at the critical areas below the Grain Inverters and on the inside of the cooling area. Solid, non-perforated exterior sheets are used at the Grain Inverters and in the discharge section to minimize particulate escape.

STANDARD PATENTED ACCU-TROL METERING SYSTEM

GSI’s field proven Accu-Trol is self cleaning and has UHMW in all contact areas for lower horse power demand and extreme life. Grain travels a short distance with no damage on a standard stainless steel floor with a VFD drive for accurate dependable operation. Customize your system with an optional integrated discharge auger for direct delivery of the grain to a bucket elevator.

MANUALS

Download the manual for your 40-Series grain bin model to get user information, assembly instructions and more.

BROCHURES

Learn about the entire range of 40-Series products to find the grain bin that fits your operation.
